Anytone AT-D890UV Dual Band VHF/UHF/DMR/NXDN Handheld Transceiver, Airband Rx
Anytone AT-D890UV Dual-Band VHF/UHF/DMR Handheld Transceivers feature built-in Bluetooth, GPS, and APRS capability. They include Air Band AM receive, cross-band repeater mode, and analog scrambler/compander functions. A vibrant 1.77-inch color TFT display provides easy access to 4,000 channels and up to 500,000 digital contacts with AES-256 encryption. These transceivers are powered by a 3100mAh battery with convenient USB-C charging and upgraded 2G memory capacity.
Key Features:
– Air-Band AM Rx: Receive AM aircraft communications including ATC, traffic, and aviation broadcasts for monitoring and situational awareness.
– Cross Band Repeater: Repeats signals between VHF and UHF bands, extending communication range and bridging different frequency channels seamlessly.
– True Dual Receive: Monitor two frequencies simultaneously, allowing you to stay aware of multiple channels or repeaters without switching back and forth.
– Analog Scrambler and Compander: Improves audio clarity and reduces background noise during while providing added privacy.
– Dual-Band / Dual-Mode: Operates on both VHF and UHF bands and supports Analog FM and Digital DMR (Tier I & II), providing flexible compatibility across different networks and systems.
– GPS / APRS: Built-in GPS provides accurate location data via APRS (Automatic Packet Reporting System) enabling position reporting, messaging, and tracking over the DMR network.
– High Capacity USB-C Battery (3100 mAh): 7.4V Li‑ion battery pack allows for well over 24 hours of use in power‑saver mode with the convenience of modern USB‑C charging.

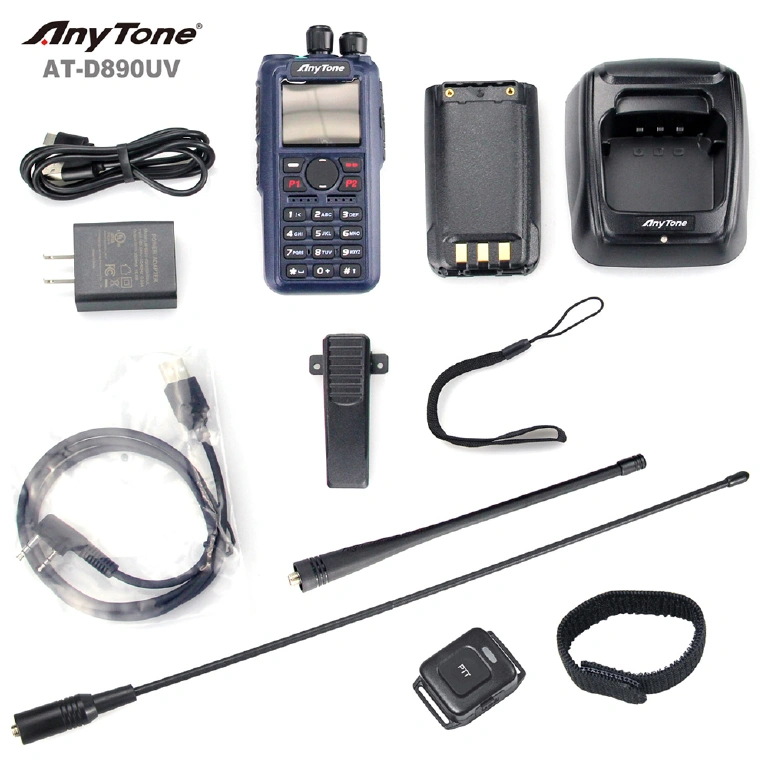

Includes:
- Anytone AT-D890UV Handheld Transceiver
- Dual Band Antenna
- 3100mAh Li-ion USB-C Battery

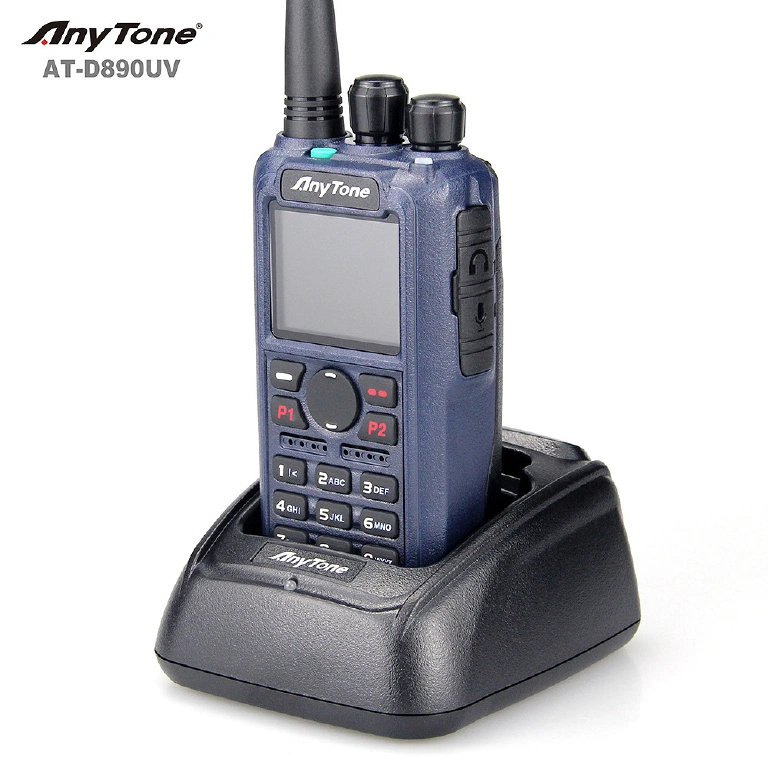

- Desk Charger and AC Adaptor
- Belt Clip
- Bluetooth PTT Button
- Programming Cable
- Wrist Strap
- Instruction Manual
Additional Features and Specifications:
Frequency Range:
- 87.6 – 108MHz (Rx only)
- 108 – 136MHz (Rx only)
- 136 – 174MHz (Tx and Rx)
- 400 – 480MHz (Tx and Rx)
- Transmit Power (VHF): 0.2 / 2.5 / 5 / 7W
- Transmit Power (UHF): 0.2 / 2.5 / 5 / 6W
- Weight: 1.72lbs.

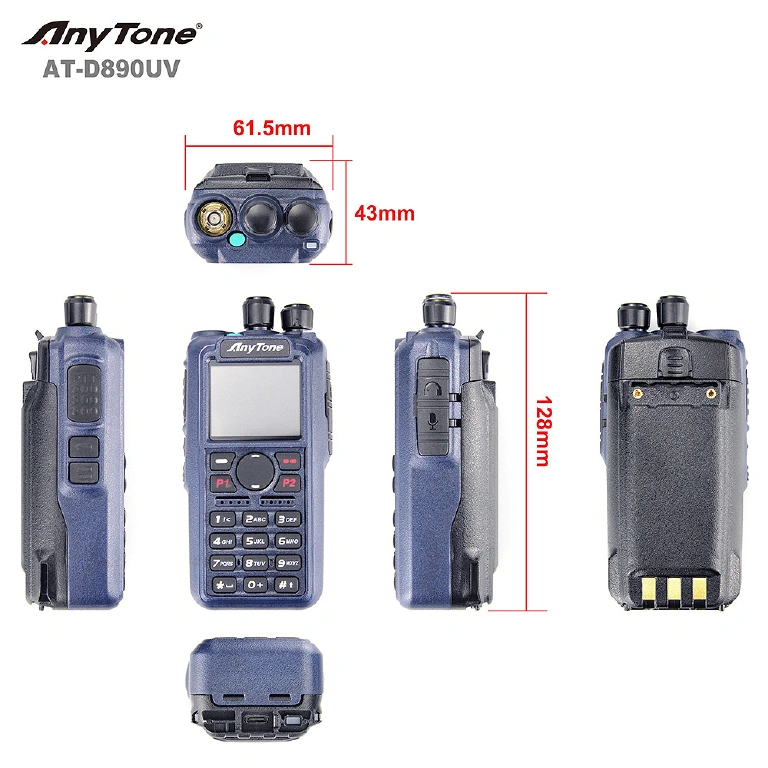

- Dimensions (WxHxD): 5.25 x 8.25 x 4.25in.
- True-2-slot: Provide 2-slot communication which allows for 2 talk paths on 1 frequency; ETSI DMR Tier I and II compliant
- Tx Power: VHF: 7/5/2.5/0.2W, UHF: 6/5/2.5/0.2W
- Auto-senses digital or analog reception
- Channels: 4000 channels + VFO; 10,000 talk groups with 500,000 digital contacts
- Display: 1.77 inch TFT color LCD, dual display; dual standby; dual PA
- Bandwidth: 12.5K/25K (Analog); 12.5K (DMR)
- Tones: Fixed and defined CTCSS/DCS encode and decode
- DTMF/2TONE/5TONE, encode and decode
- Tone-pulse frequencies: Four different frequencies
- Groups: Individual/Group/All call
- Support Contact Manager
- Caller ID and Name Display
- SMS via keyboard, One touch call/text
- Zone selection; Ranging function between radios with GPS
- ANI function and PTT ID; VOX; Digital Recording and Play
- Roaming function; Talker alias function
- Wide band full duplex receive capability
- Emergency alarm: (with GPS data transmission)
- Bluetooth module: Built-in
- GPS with APRS location reporting
- Digital Encryption: AES256 and ARC4
- Air Band AM RX
- Cross band repeat
